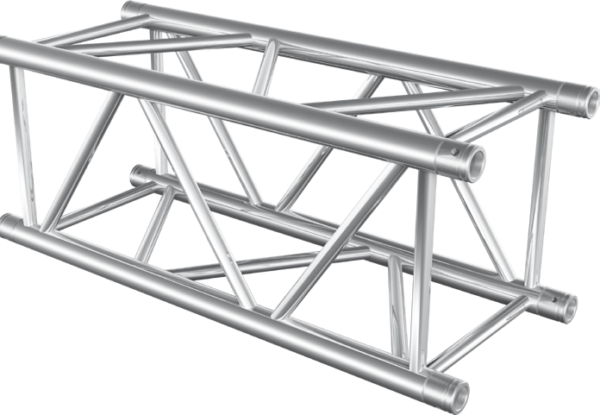

SS-45
SS-45 has proven to be the ultimate multipurpose truss for many of our users around the globe. The straight elements lend themselves perfectly for spans up to 18m or as standard tower elements.
SS-45 is using the 3 mm wall thickness in the maintube which assures durability and extra strength.
Specifications SS45
| Specification | Details |
|---|---|
| Height | 450 mm |
| Width | 450 mm |
| Pin Position | Diagonal |
| Main Tube | 50 x 3 mm |
| Braces | 25 x 2 mm |
| Material | EN AW-6082 T6 |
SIZE: 450*450/3mm thickness. Main tube is ⌀ 50mm*3mm,vice tube is ⌀ 50mm*2mm,Brace is ⌀ 25mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 18m with max load 550kg
| Span In Meter (m) | Point Load (kg) | Distributed Load (kg/m) |
|---|---|---|
| 7 | 886 | 253 |
| 8 | 800 | 200 |
| 9 | 743 | 165 |
| 10 | 700 | 140 |
| 11 | 687.5 | 125 |
| 12 | 600 | 100 |
| 13 | 481 | 74 |
| 14 | 455 | 65 |
| 15 | 405 | 54 |
| 16 | 368 | 46 |
| 17 | 298 | 35 |
| 18 | 275 | 30 |
